How do I find data using Earthdata Search?

The original source for this document is https://nasa-openscapes.github.io/2021-Cloud-Workshop-AGU/tutorials/01_Earthdata_Search.html

This tutorial guides you through how to use Earthdata Search for NASA Earth observations search and discovery, and how to connect the search output (e.g. download or access links) to a programmatic workflow (locally or from within the cloud).

Step 1. Go to Earthdata Search and Login

Go to Earthdata Search https://search.earthdata.nasa.gov and use your Earthdata login credentials to log in. If you do not have an Earthdata account, please see the Workshop Prerequisites for guidance.

Step 2. Search for dataset of interest

Use the search box in the upper left to type key words. In this example we are interested in the ECCO dataset, hosted by the PO.DAAC. This dataset is available from the NASA Earthdata Cloud archive hosted in AWS cloud.

Click on the “Available from AWS Cloud” filter option on the left. Here, 104 matching collections were found with the basic ECCO search.

Figure caption: Search for ECCO data available in AWS cloud in Earthdata Search portal

Let’s refine our search further. Let’s search for ECCO monthly SSH in the search box (which will produce 39 matching collections), and for the time period for year 2015. The latter can be done using the calendar icon on the left under the search box.

Scroll down the list of returned matches until we see the dataset of interest, in this case ECCO Sea Surface Height - Monthly Mean 0.5 Degree (Version 4 Release 4).

We can click on the (i) icon for the dataset to read more details, including the dataset shortname (helpful for programmatic workflows) just below the dataset name; here ECCO_L4_SSH_05DEG_MONTHLY_V4R4.

Figure caption: Refine search, set temporal bounds, get more information

2.a. Example 1: Search Using Keywords

Searching for level 4 ocean current data archived at PO.DAAC

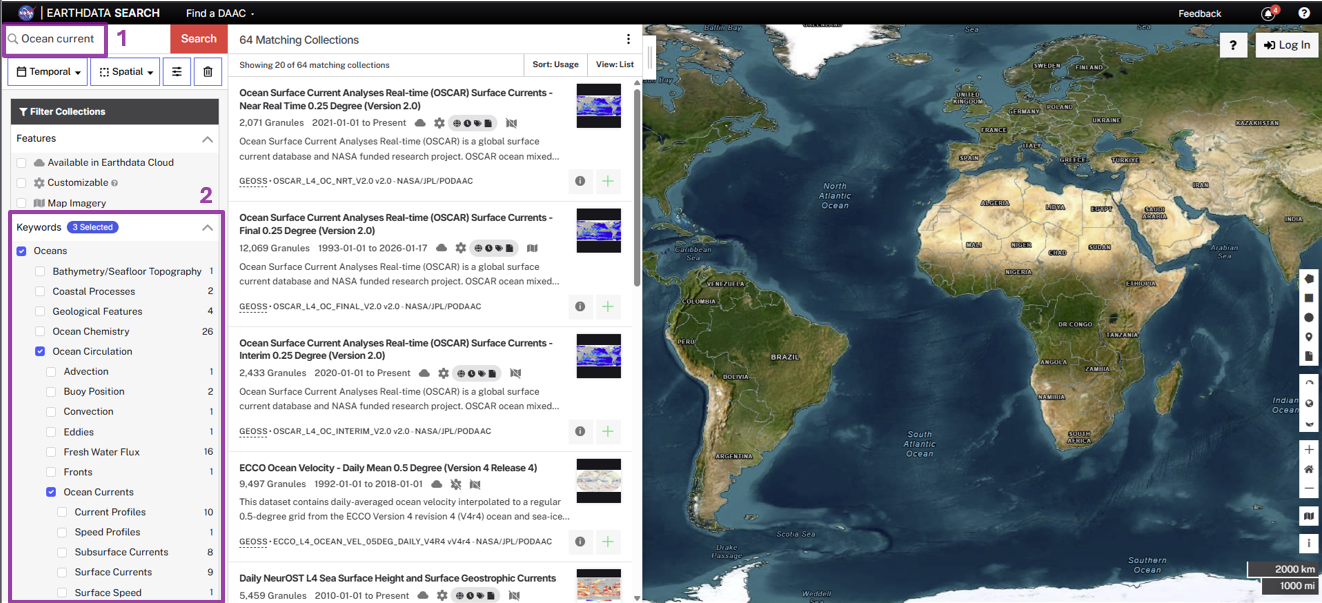

When searching for ocean current data, using a single keyword search for ocean currents returns a broad mix of collections — model output, altimetry-derived products, in-situ drifter data, and more. The Filters panel on the left lets us combine several search filters to narrow this down:

  1. Keyword search: start broad with ocean current in the search bar
  2. Keywords (Science Keywords) filter: Oceans > Ocean Circulation > Ocean Currents
  3. Organizations filter: select PO.DAAC to restrict to data archived at this DAAC
  4. Processing Levels filter: check 4 - Gridded Model Output to browse the gridded products rather than data on un-gridded satellite passes

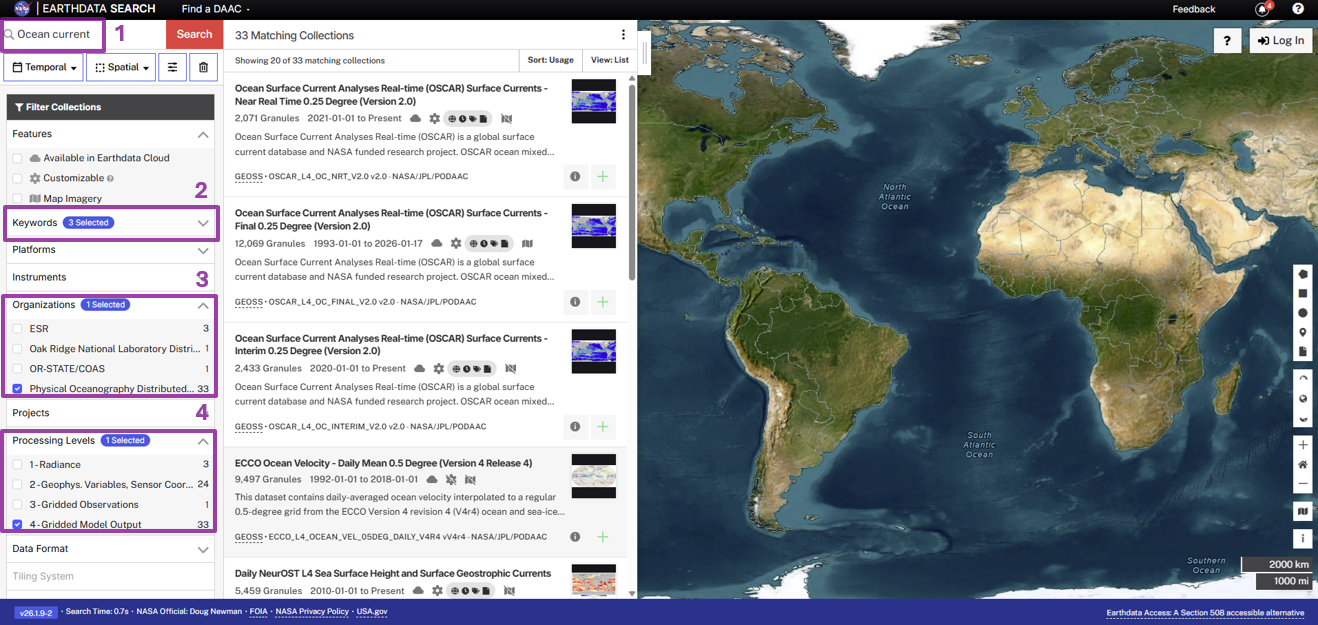

Figure caption: Combining keyword, Science Keywords, Organization, and Processing Level filters to find ocean current data

Combining multiple search filters narrows down ~500 collections to a short, specific list of ~30.

2.b. Example 2: Search Using Spatial Bounds with Keywords

Searching for highest available resolution level 4 data within known spatial bounds

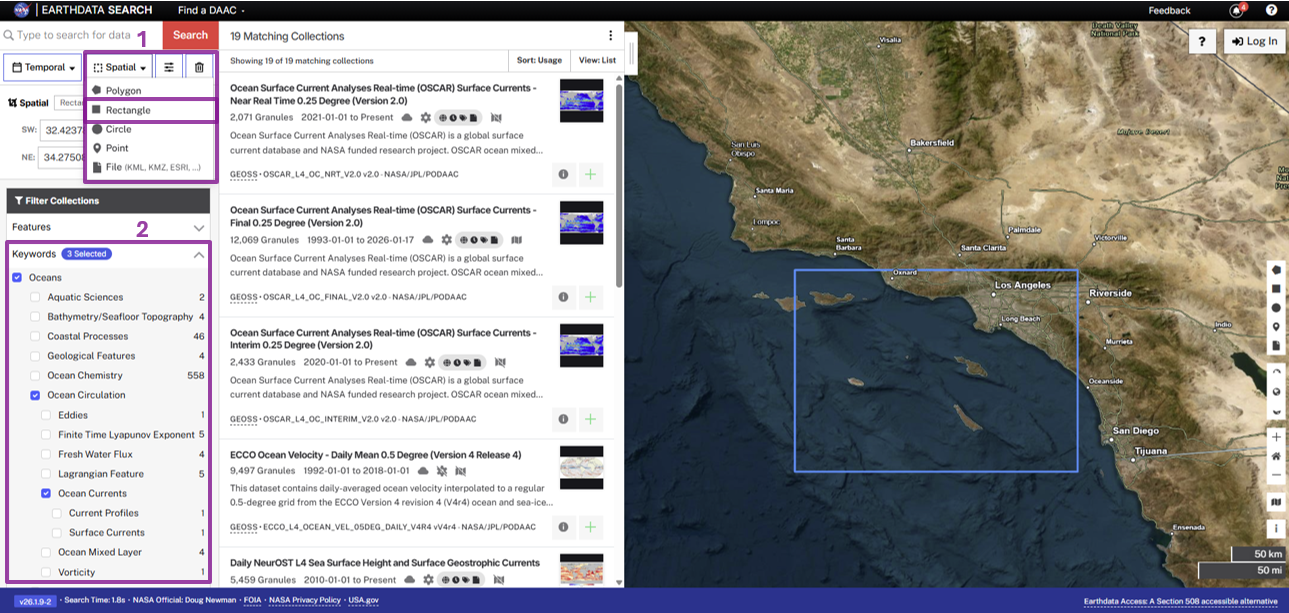

  1. Use the Spatial search tool above the map (the icons at the top of the search panel) to define the area. You can:
    • Draw a rectangle, polygon, or circle directly on the map
    • Enter a single point (lat/lon) with a search radius
    • Or upload a Shapefile, KML, GeoJSON, or GeoRSS file

Earthdata Search immediately filters the collection list to only those with data intersecting the drawn area, updating live as you adjust the shape

  1. Keywords (Science Keywords) filter: Oceans > Ocean Circulation > Ocean Currents
  2. Processing Levels filter: check 4 - Gridded Model Output for an analysis-ready gridded product
  3. Horizontal Data Resolution filter: check 4 - 10 to 50km to browse the gridded products rather than data on un-gridded satellite passes

Combining multiple search filters narrows down ~11,000 collections to a short, specific list of 4.

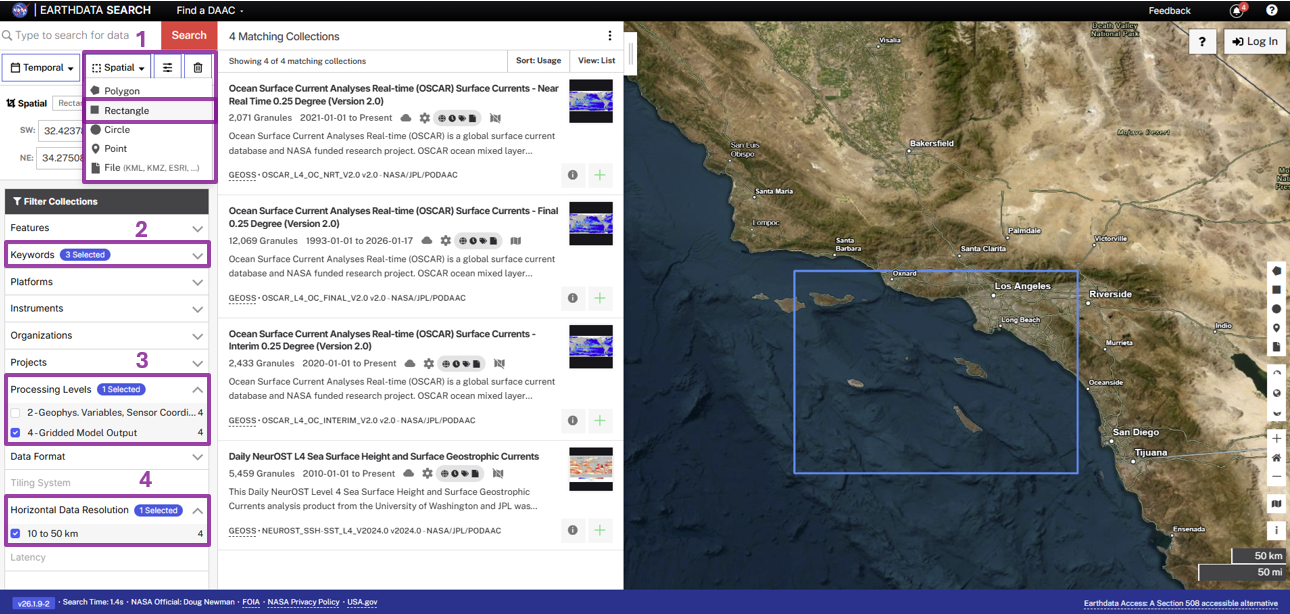

Figure caption: Drawing a spatial polygon to restrict search results to a specific region and combining Science Keywords, Processing Level, and Horizontal Data Resolution filters to find ocean current data

Step 3. Explore the dataset details, including Cloud Access information

Once we clicked the (i), scrolling down the info page for the dataset we will see Cloud Access information, such as:

  • whether the dataset is available in the cloud
  • the cloud Region (all NASA Earthdata Cloud data is/will be in us-west-2 region)
  • the S3 storage bucket and object prefix where this data is located
  • link that generates AWS S3 Credentials for in-cloud data access (we will cover this in the Direct Data Access Tutorials)
  • link to documentation describing the In-region Direct S3 Access to Buckets. Note: these will be unique depending on the DAAC where the data is archived. (We will show examples of direct in-region access in Tutorial 3.)

Figure caption: Cloud access info in EDS

Figure caption: Documentation describing the In-region Direct S3 Access to Buckets

Pro Tip: Clicking on “For Developers” to exapnd will provide programmatic endpoints such as those for the CMR API, and more. CMR API and CMR STAC API tutorials can be found on the 2021 Cloud Hackathon website.

For now, let’s say we are intersted in getting download link(s) or access link(s) for specific data files (granules) within this collection.

At the top of the dataset info section, click on Search Results, which will take us back to the list of datasets matching our search parameters. Clicking on the dataset (here again it’s the same ECCO Sea Surface Height - Monthly Mean 0.5 Degree (Version 4 Release 4)) we now see a list of files (granules) that are part of the dataset (collection).

Step 4. Customize the download or data access

Click on the green + symbol to add a few files to our project. Here we added the first 3 listed for 2015. Then click on the green button towards the bottom that says “Download”. This will take us to another page with options to customize our download or access link(s).

Figure caption: Select granules and click download

4.a. Entire file content

Let’s stay we are interested in the entire file content, so we select the “Direct Download” option (as opposed to other options to subset or transform the data):

Figure caption: Customize your download or access

Clicking the green Download Data button again, will take us to the final page for instructions to download and links for data access in the cloud. You should see three tabs: Download Files, AWS S3 Access, Download Script:

Figure caption: Download to local Figure caption: Direct S3 access Figure caption: Downloading scrip

The Download Files tab provides the https:// links for downloading the files locally. E.g.: https://archive.podaac.earthdata.nasa.gov/podaac-ops-cumulus-protected/ECCO_L4_SSH_05DEG_MONTHLY_V4R4/SEA_SURFACE_HEIGHT_mon_mean_2015-09_ECCO_V4r4_latlon_0p50deg.nc

The AWS S3 Access tab provides the S3:// links, which is what we would use to access the data directly in-region (us-west-2) within the AWS cloud (an example will be shown in Tutorial 3). E.g.: s3://podaac-ops-cumulus-protected/ECCO_L4_SSH_05DEG_MONTHLY_V4R4/SEA_SURFACE_HEIGHT_mon_mean_2015-09_ECCO_V4r4_latlon_0p50deg.nc where s3 indicates data is stored in AWS S3 storage, podaac-ops-cumulus-protected is the bucket, and ECCO_L4_SSH_05DEG_MONTHLY_V4R4 is the object prefix (the latter two are also listed in the dataset collection information under Cloud Access (step 3 above)).

Tip: Another quicker way to find the bucket and object prefix is from the list of data files the search returns. Next to the + green button is a grey donwload symbol. Click on that to see the Download Files https:// links or on the AWS S3 Access to get the direct S3:// access links, which contain the bucket and object prefix where data is stored.

4.b. Subset or transform before download or access

DAAC tools and services are also being migrated or developed in the cloud, next to that data. These include the Harmony API and OPeNDAP in the cloud, as a few examples.

We can leverage these cloud-based services on cloud-archived data to reduce or transform the data (depending on need) before getting the access links regardless of whether we prefer to download the data and work on a local machine or whether we want to access the data in the cloud (from a cloud workspace). These can be useful data reduction services that support a faster time to science.

Harmony

Harmony allows you to seamlessly analyze Earth observation data from different NASA data centers. These services (API endpoints) provide data reduction (e.g. subsetting) and transfromation services (e.g. convert netCDF data to Zarr cloud optimized format).

Figure caption: Leverage Harmony cloud-based data transformation services

When you click the final green Download button, the links provided are to data that had been transformed based on our selections on the previous screen (here chosing to use the Harmony service to reformat the data to Zarr). These data are staged for us in an S3 bucket in AWS, and we can use the s3:// links to access those specific data. This service also provides STAC access links. This particular example is applicable if your workflow is in the AWS us-west-2 region.

Figure caption: Harmony-staged data in S3
